by Tim Corrigan
According to data from the CDC, each year in the U.S. there are on average over 700 deaths, 900 hospitalizations, and 67,000 emergency room visits due to heat. The problem is exacerbated in dense urban areas that are predominantly impervious surfaces with very few trees for shade and cooling. In fact, there can be as much as an 18-degree temperature difference between shaded areas and areas in full sunlight.
An urban heat island (UHI) effect occurs when dense, urban areas with high concentrations of impervious surfaces amplify ambient air temperatures in comparison to surrounding, less developed areas. The major causes of the UHI effect include release of heat from equipment, lack of vegetation, and increased heat absorption by materials like asphalt.
An urban heat island effect occurs when dense, urban areas with high concentrations of impervious surfaces amplify ambient air temperatures in comparison to surrounding, less developed areas.
The City of Chelsea, advocacy group GreenRoots, and Weston & Sampson used funding from the Massachusetts Municipal Vulnerability Preparedness (MVP) program to study the UHI effect in Chelsea, Mass., the second most densely populated city in the state and an environmental justice community. This status indicates that residents are disproportionately more vulnerable to environmental conditions such as extreme heat due to several socioeconomic factors.

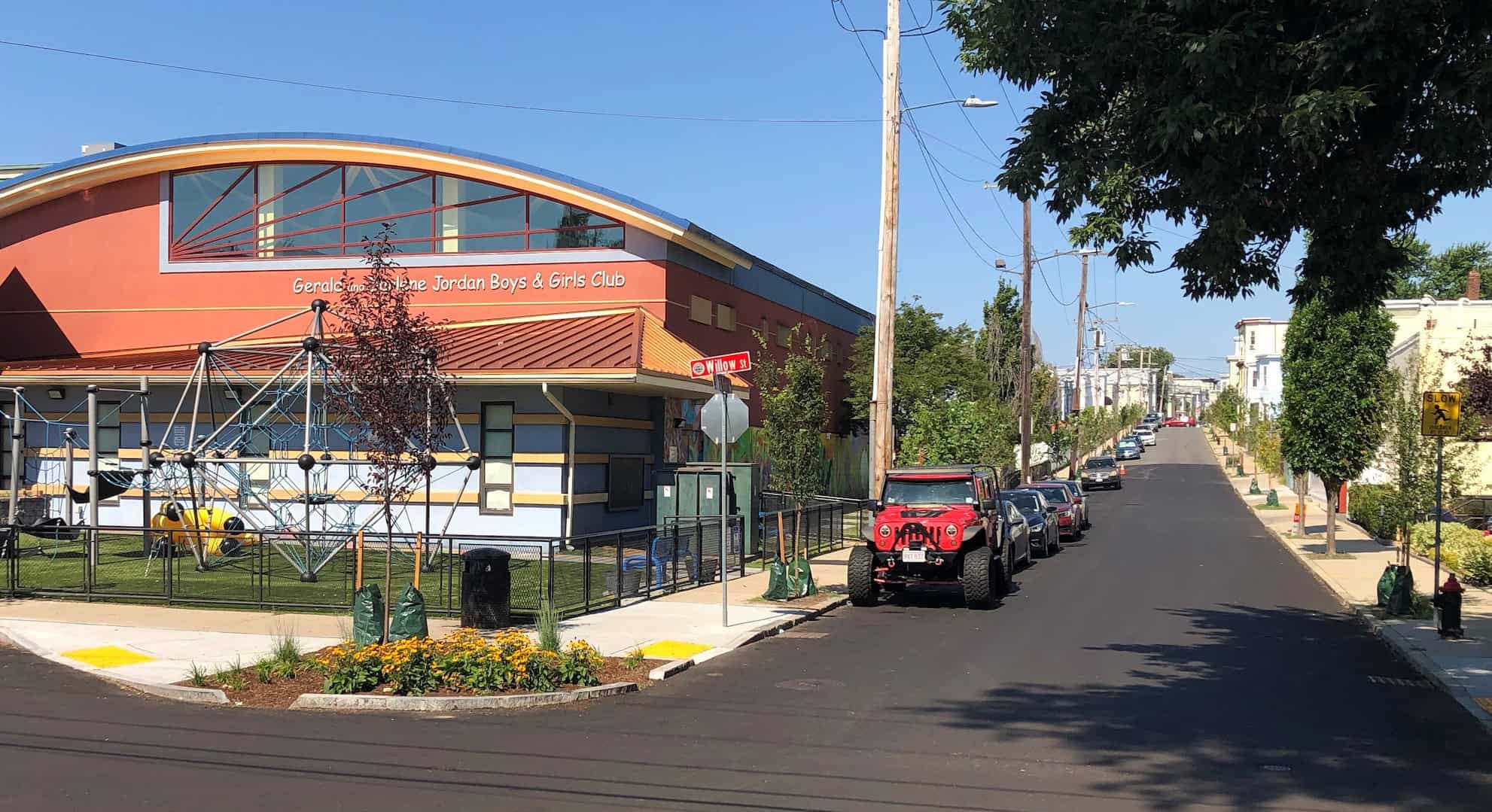

Nine “hot spot” areas were identified and categorized into “existing hot spots” and “emerging hot spots.” Based on the type of land cover and social vulnerability index, three out of the nine were selected as potential candidate areas to prioritize. The project team then determined one site, centered around the local Boys & Girls Club, as a “cool block” project area to implement pilot UHI mitigation strategies.
In this area, the heat model determined that a reduction of impervious surface by 25% will reduce the ambient air temperature by up to 3.0° F on a 95-degree day. An increase of tree canopy area to 30% will result in up to a 3.5° F reduction in ambient air temperature as well.
The Chelsea UHI project will serve as a proof-of-concept in Chelsea and other areas for modeling urban heat and identifying, testing, and implementing new mitigation strategies.

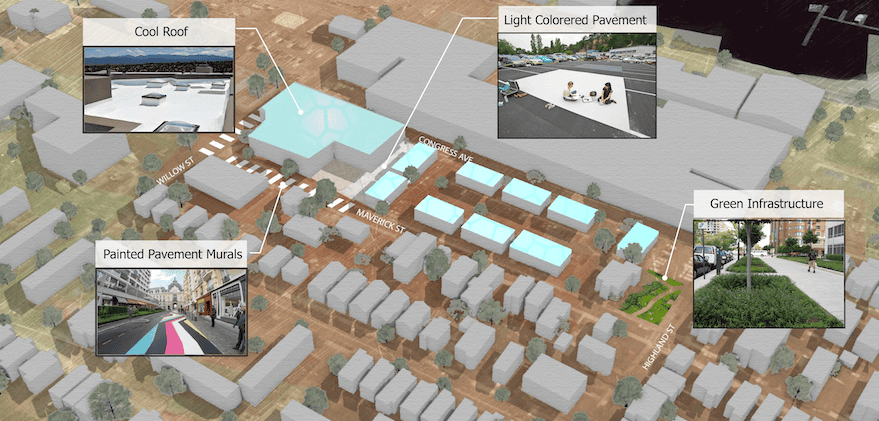

The goal is to pilot various UHI mitigation strategies to inform future infrastructure project capital planning while also improving neighborhood roadway surface condition, local drainage, and pedestrian safety. The pilot design included reflective roof coatings, reconstruction of roads with light colored aggregate pavements, blast treatment of roadway pavement to reveal lighter-colored aggregates, replacement of asphalt sidewalks with concrete, rainwater infiltration swales, and installation of numerous shade trees for canopy.
Installation of these improvements began this past spring and summer and the city is pursuing partnerships with private owners for pilot retrofits of mid-lifecycle synthetic rubber roofs. The project also involved placing a series of sensors in strategic areas to measure actual changes in air temperature, relative humidity, and dew point during pre- and post-project periods. The project is expected to serve as a proof-of-concept in Chelsea and in other areas and for modeling urban heat, identifying heat mitigation strategies, and testing and implementing new strategies.
Tim Corrigan
Tim Corrigan, PE is a team leader at Weston & Sampson.
